| Technical Parameter | Specification |
|---|---|
| Lifting Capacity | 500kg–16 tons (customizable) |
| Lifting Speed | 3.5/7/8 m/min or customized (VFD optional) |
| Control Mode | Pendant control, wireless remote control |
| Explosion Protection Class | Exd II CT6, Ex tD A21 IP65 (or customizable) |
| Power Supply | 220V, 380V, 440V, 50Hz or 60Hz (customizable) |
| Work Duty | FEM 2M / ISO M5 |
| Installation Type | Fixed or mobile installation |
| Working Temperature | -20°C to +60°C |

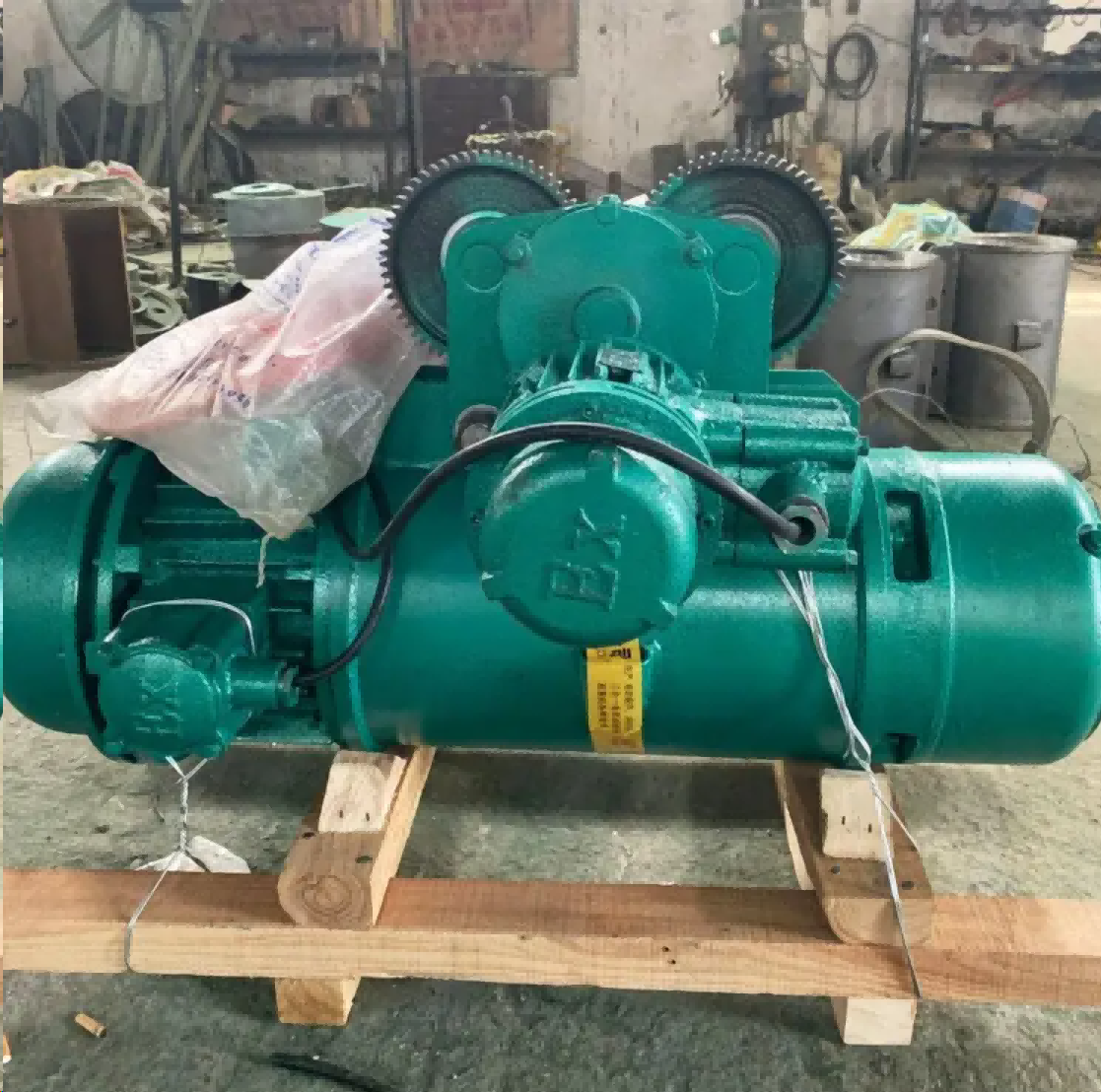

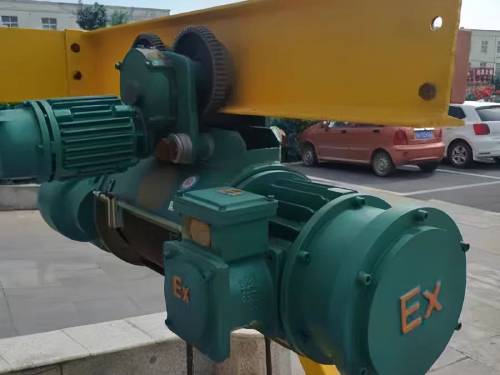

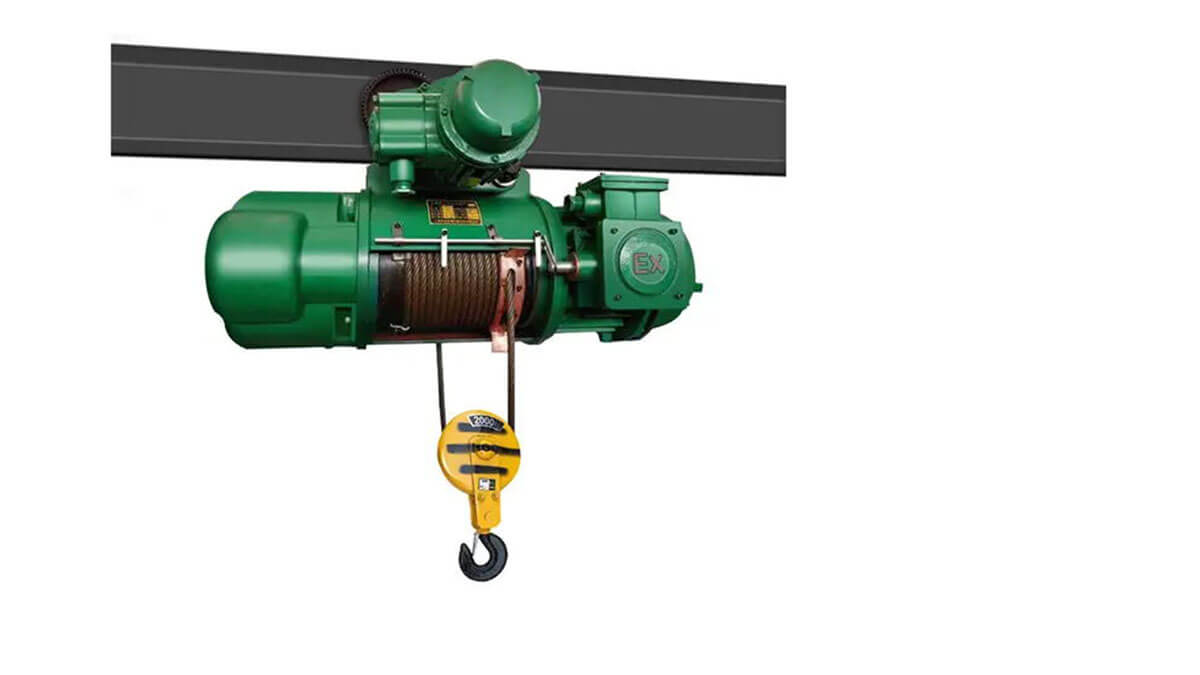

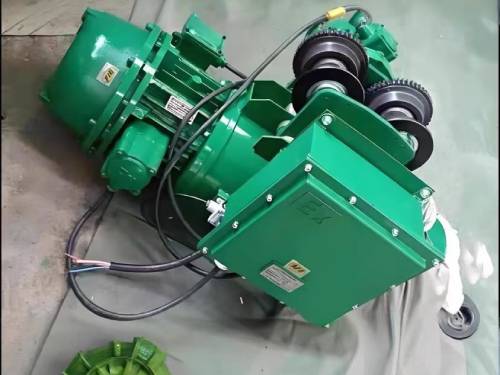

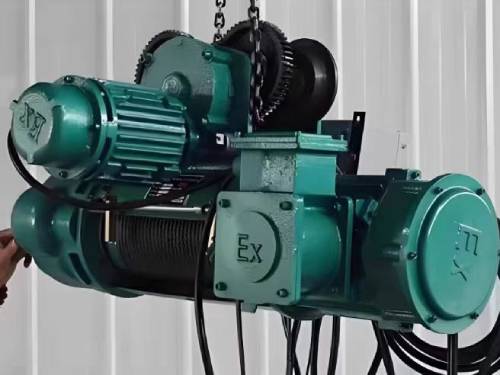

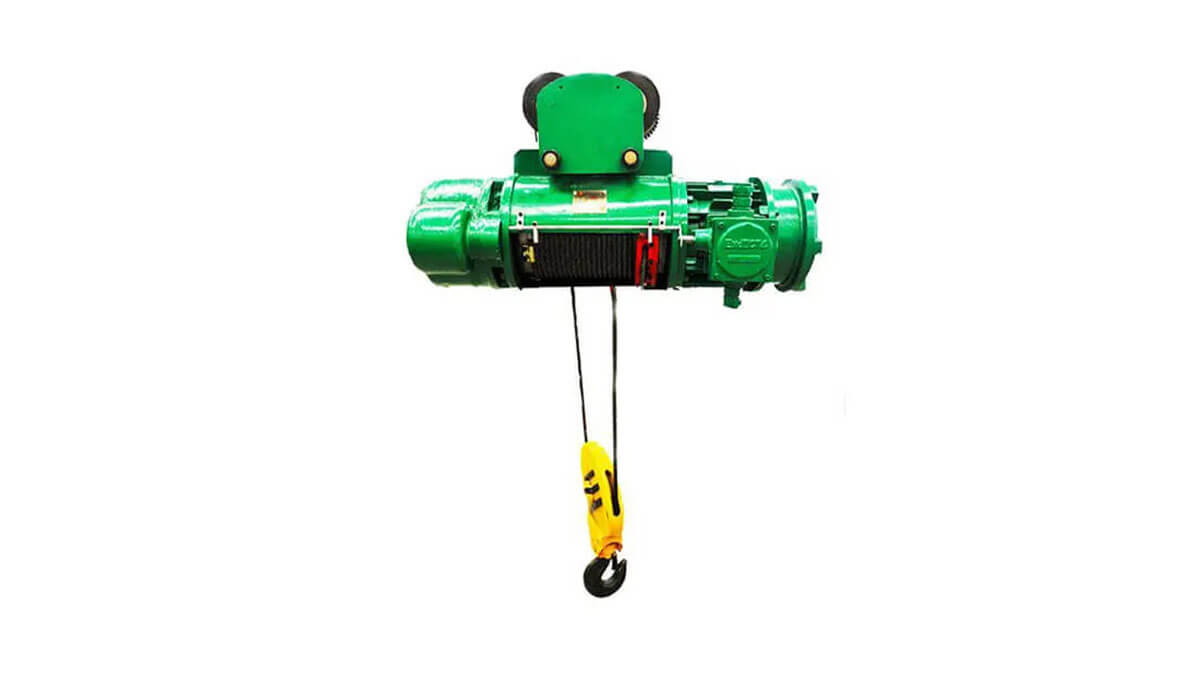

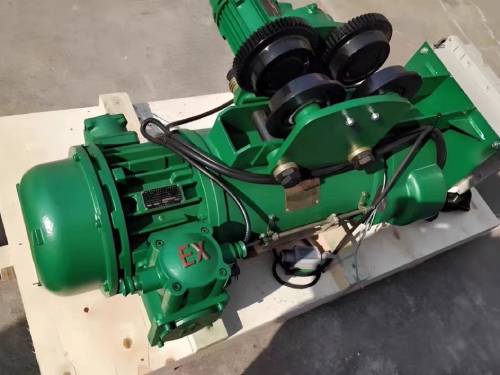

The CD Explosion-Proof Electric Hoist is designed for use in explosive atmospheres, such as those found in chemical plants, oil refineries, and other industries where flammable gases, vapors, or dust may be present. Built to meet rigorous explosion-proof standards, it provides reliable and safe lifting in hazardous environments. Available in various lifting capacities and speeds, it offers flexibility for different industrial applications. The hoist is suitable for both stationary and mobile installations, ensuring safety and efficiency across a range of applications.
■ Explosion-Proof Design: Meets international standards for explosion protection (Exd II CT6, Ex tD A21 IP65), ideal for hazardous environments.
■ Wide Load Range: Available in capacities from 500kg to 16 tons, catering to various lifting needs.
■ Flexible Speed Options: Adjustable lifting speeds (3.5/7/8 m/min) with optional VFD for precision control.
■ Safe & Reliable: Includes features like overcurrent protection, anti-slip mechanisms, and limit switches for safe operation
■ Corrosion-Resistant Materials: Built with durable materials and coatings to withstand corrosive and demanding environments.
■ Easy Installation & Maintenance: Compact design for installation in tight spaces, with simple maintenance for low downtime.
■ Multiple Control Options: Pendant or wireless remote control options for flexible operation.
■ Wide Voltage Compatibility: Operates with a variety of power supplies (220V–440V), suitable for international use.
