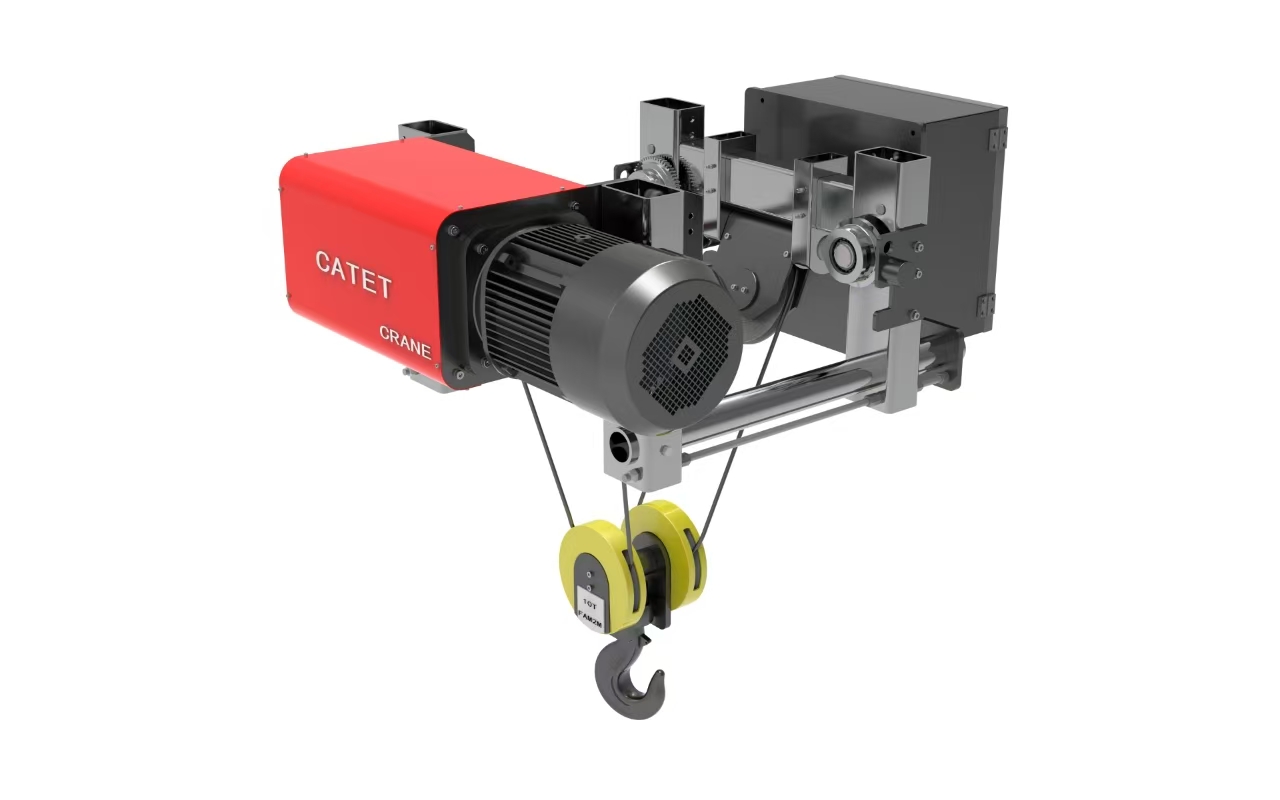

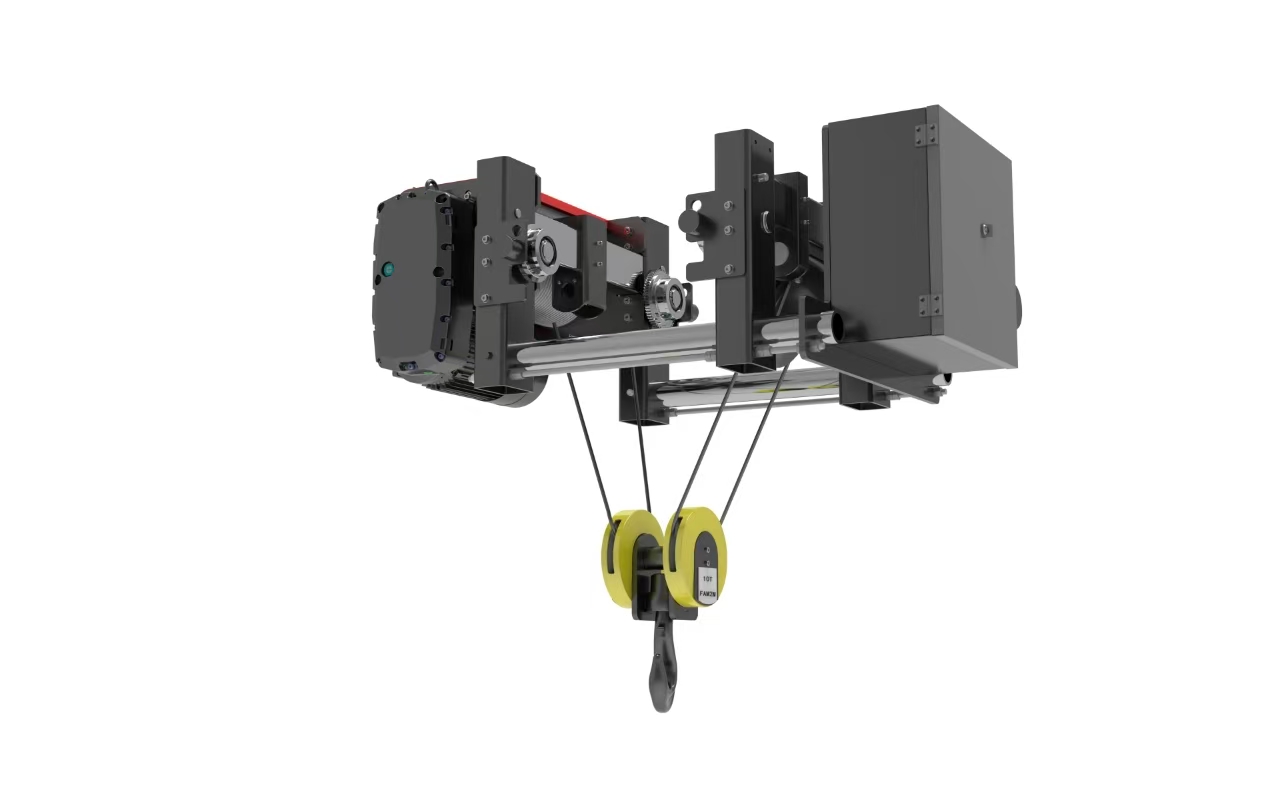

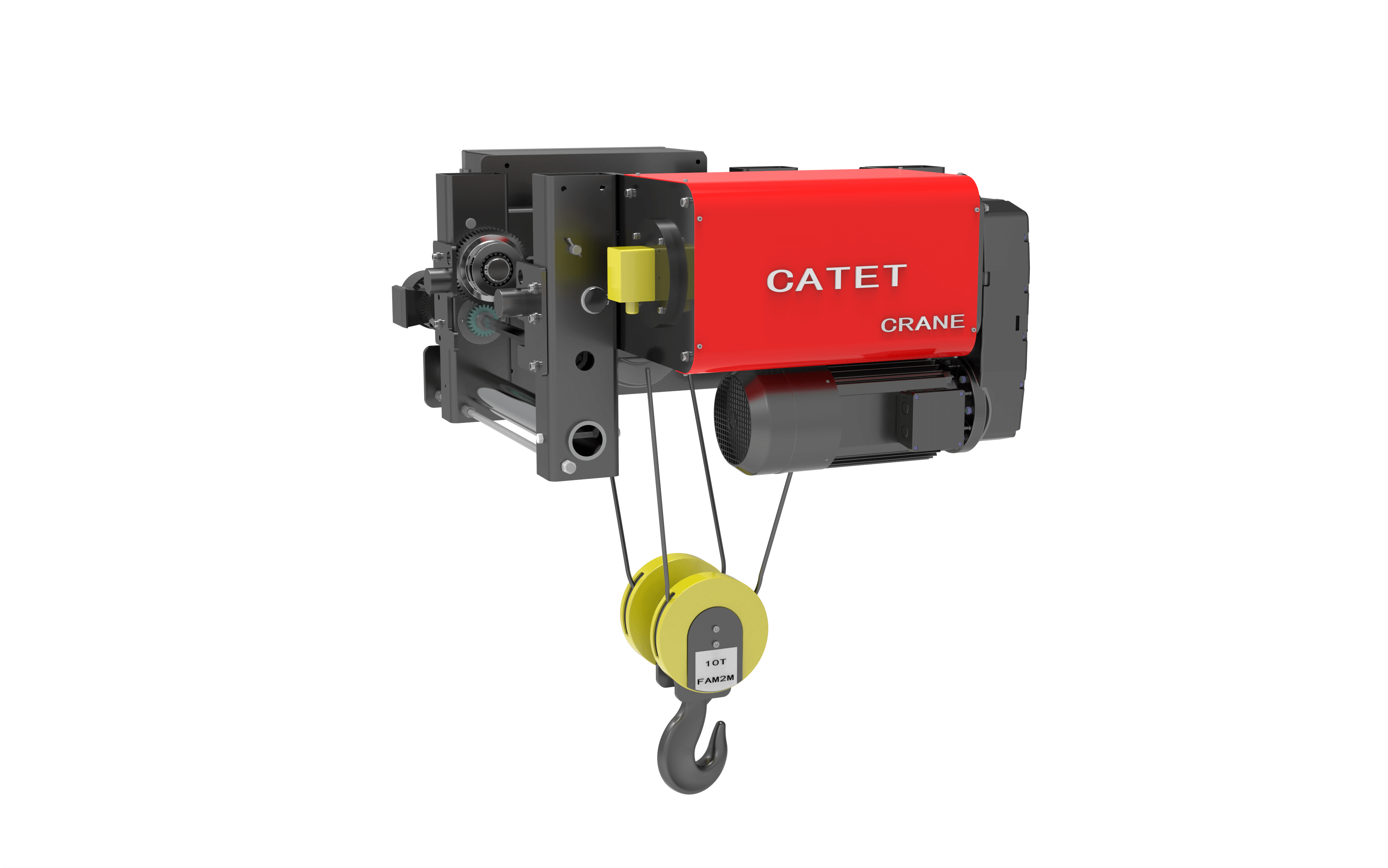

Single Beam Electric Hoist

Introduction to European Electric Hoist

The European electric hoist is a versatile and efficient lifting solution. It is a matching single-beam bridge gantry crane that provides a safe and reliable method for lifting and transporting heavy objects in factories, warehouses and other industrial environments. The hoist is ideal for lifting and transporting heavy objects within industrial facilities. It can be used in manufacturing plants, warehouses, steel mills, machining, aerospace, military industry and other environments that require efficient and safe lifting operations. You can choose an explosion-proof hoist with an explosion-proof grade of ExtIIICT130℃ ExtbIIIBT130℃.

Advantages of European electric hoists

■   Adopting European FEM design standards, working level M5-6

■   Efficient lifting: Electric hoists provide smooth and precise lifting operations, reducing lifting time and improving overall productivity.

■   All modular design and production, the parts used are interchangeable.

■   Safety: The hoist is designed with safety features such as overload protection, emergency stop button and anti-fall mechanism to ensure a safe working environment for operators and other personnel.

■   Durability: The hoist is made of high-quality materials and components to ensure long service life and reliable performance.

■   Customizability: The hoist can be customized according to specific requirements, such as load capacity, lifting height, additional functions, etc.

■   The lifting operation mechanism adopts variable frequency speed regulation, which runs smoothly and has low noise.

■   The crane is a low-headroom type, and the hook can lift a greater height. The hook material is: 35CrMo.

Driving mechanism

■   The operating mechanism adopts a three-in-one drive system of motor, reducer, and brake to achieve three-in-one drive and improve the safety and reliability of the equipment.

■   The motor adopts a three-phase AC variable frequency motor.

■   The reducer adopts a hard-toothed reducer.

■   The brake adopts an electromagnetic brake, and uses asbestos-free brake pads and brake discs.

Electrical system

■   The crane's operating speed, micro speed, and double speed can all be adjusted by the frequency converter.

■   It has the advantages of smooth walking and lifting operation and small inertia.

■   The control box is reasonably designed and easy to maintain.

■   The protection level is high, up to IP55.

Protective device

■   A protective cover and guardrail are provided to prevent the hook from hitting the top device.

■   Equipped with circuit self-check protection device

■   When the crane is placed outdoors, the lifting mechanism and the electric control box are equipped with rain protection devices

■   Equipped with anti-collision, sound and light alarm devices

■   Lifting weight limit, height limit

■   Overspeed protection, zero pressure protection

Optional brands

■   Motor reducer: SEW, ABM, Nord, Siemens.

■   Electrical components: Schneider, Siemens, ABB, Honeywell

■   Frequency converter: Schneider, Siemens, ABB, Danfoss, Yaskawa

■   Bearings: SKF, NSK

■   Remote control: Taiwan Yuding, Apollo, HBC
